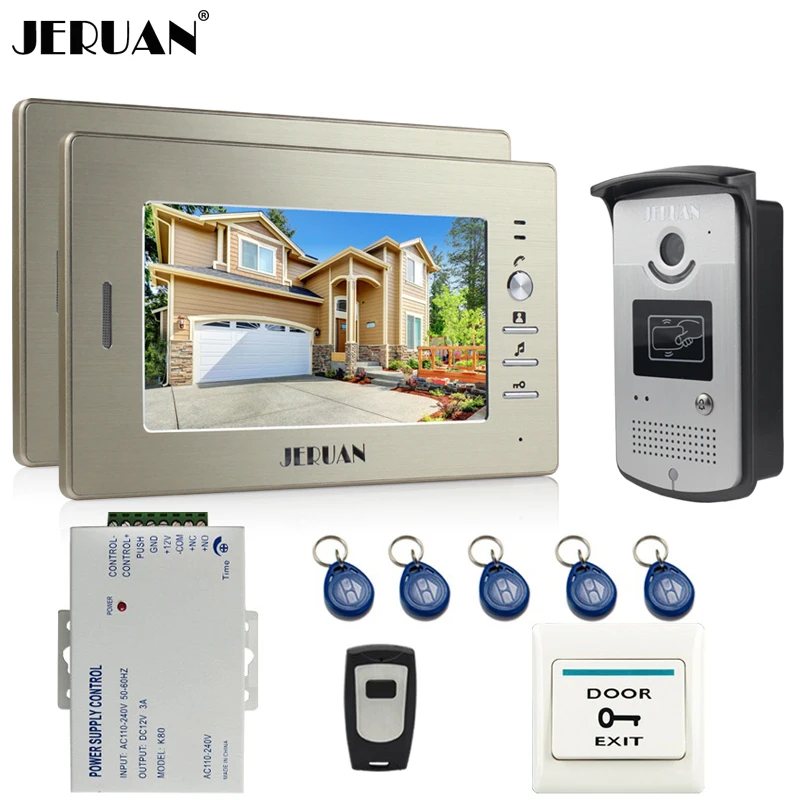

7″ Wired Home Security Video Intercom Door Phone RFID Keyfob Doorbell System

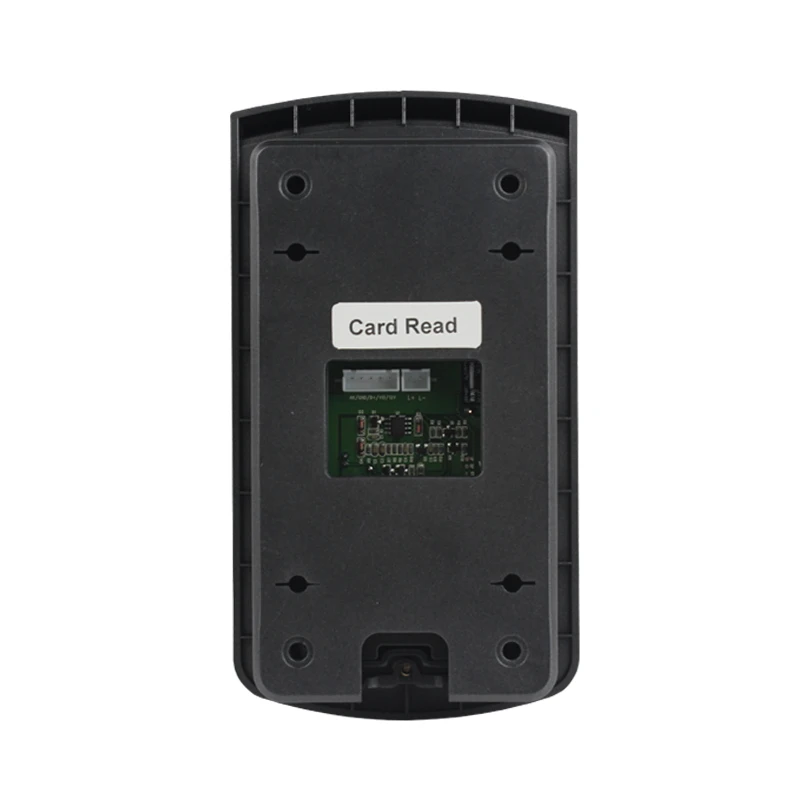

Unlock via RFID cards, Remote control and unlock button
With micro-processing technology, auto-remote control, excellent performance and high reliability.

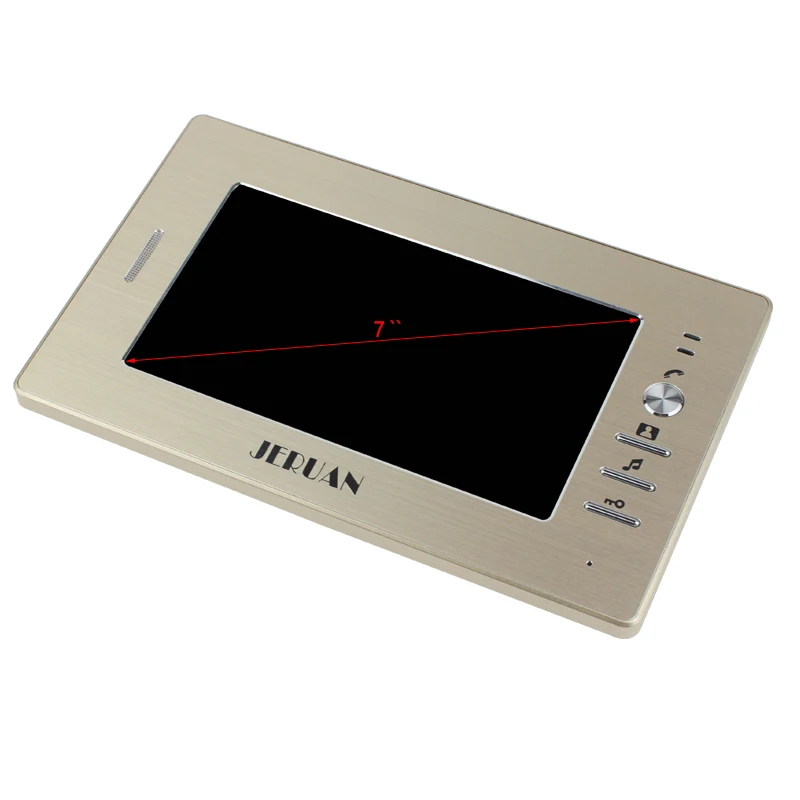

The TFT 7 inch digital color LCD for monitor.
Monitor outside manually.
Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking.
Additional monitor available up to 4(optional) and 1 outdoor cameras at most.
TFT color screen with low power consumption, no radiation and high definition.
Hands-free intercommunication.
Brightness, chroma and volume adjustable.
16-chord melody rings for option.
700TVL 1/3″ Sony COMS camera. Results in clearer video.
Do not disturb mode









- It controls electric lock directly.
- Can reduce the load of access controller, save wiring to reduce the hidden trouble
- Based delay control circuit, lock time can be in 0-15 seconds
- Automatic protection function, unexpected situations such as when the power supply
- short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
- Operative device: E/M Lock, Access Controller, Exit Push Button
Wiring
| 0.2mm2 | 0.5mm2 | 1.0mm2 |
Indoor to outdoor max distance | 30m | 50m | 100m |
Indoor to indoor max distance | 20m | 50m | 100m |
Outdoor to Electric lock max distance | 2m | 3m | 5m |

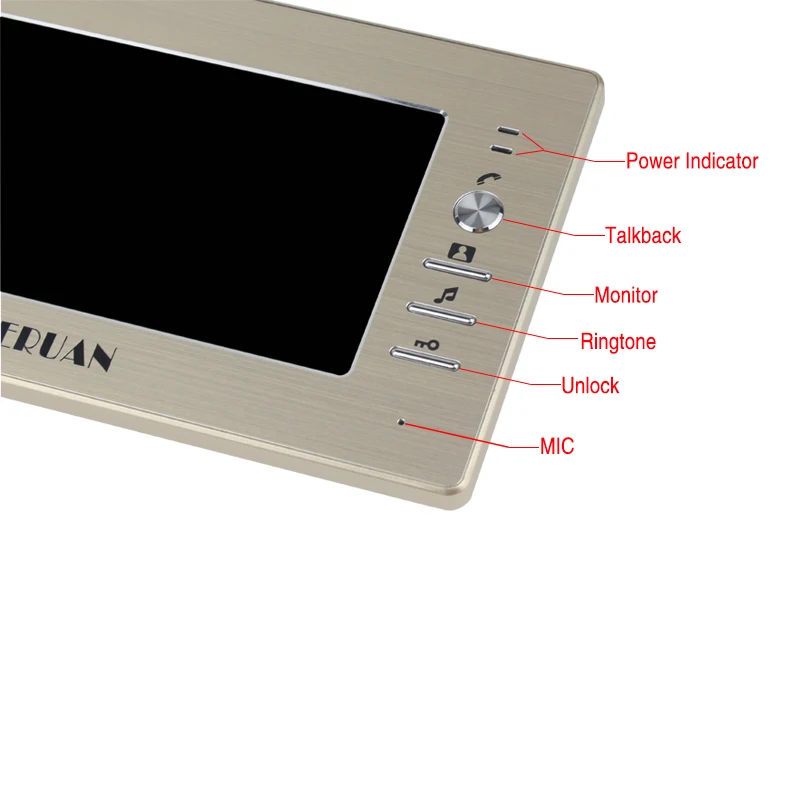

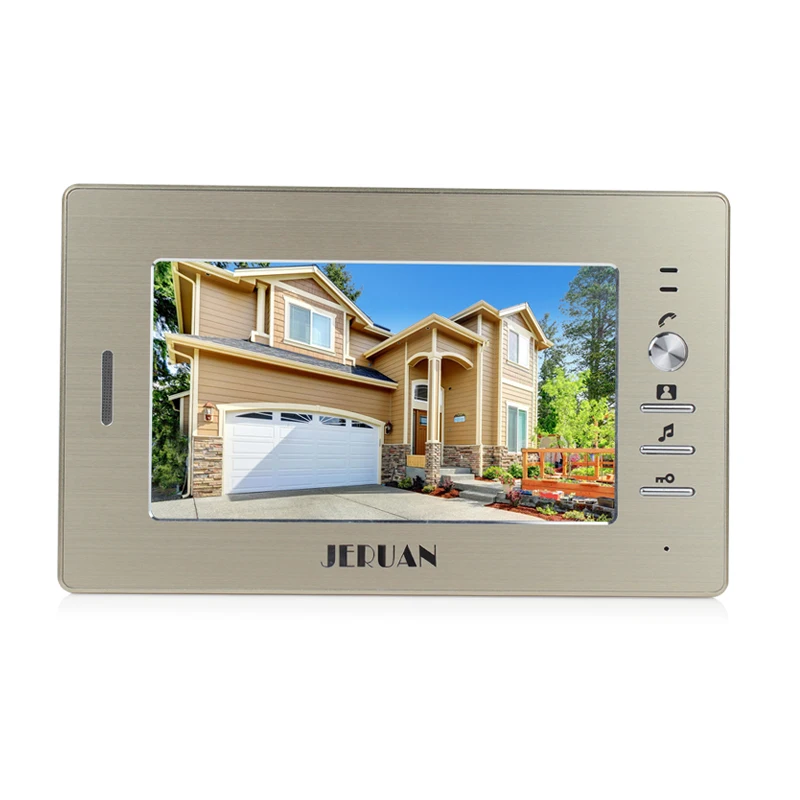

Indoor Monitor | |
Display | 7” TFT(16:9 display) |
Resolution | 800 x 480 |
Charger | Adapter input voltage |
Adapter output | DC15V 1500mA |
Material | Aluminum panel |
Installation | Surface mounting |
Power consumption | waiting-0.2W Working-0.8W |
Ring the bell | 16-chord |

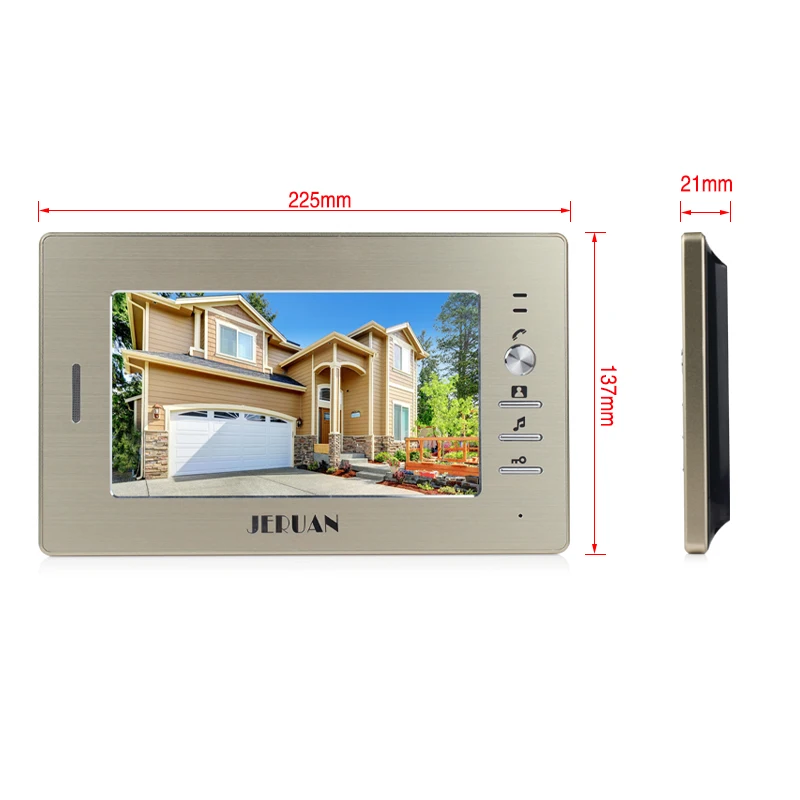

Dimensions | 225 x 137 x 21mm (H x W x T ) |
Net Weight | 0.32kg |

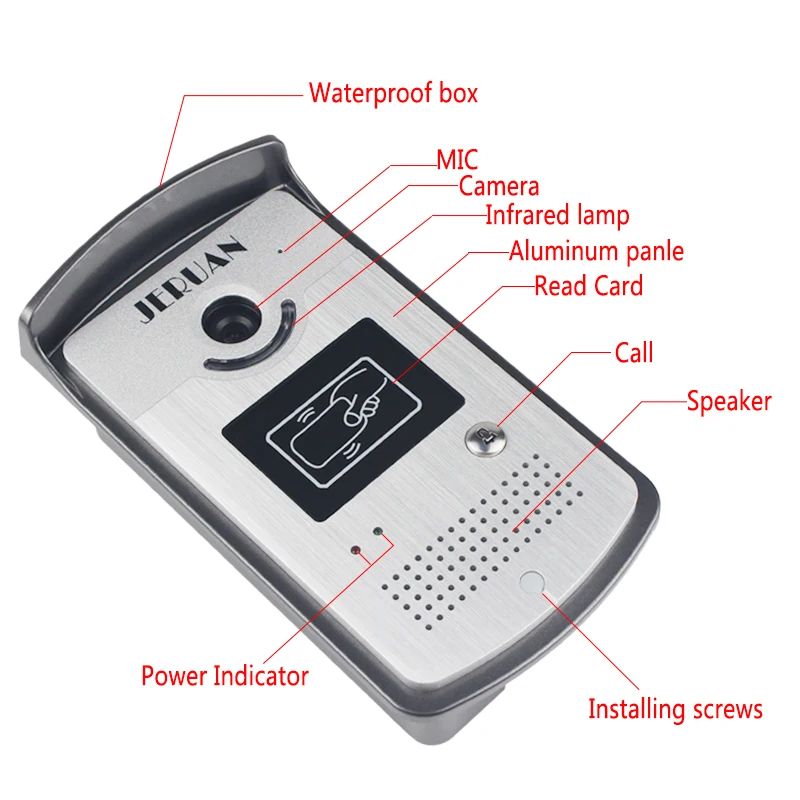

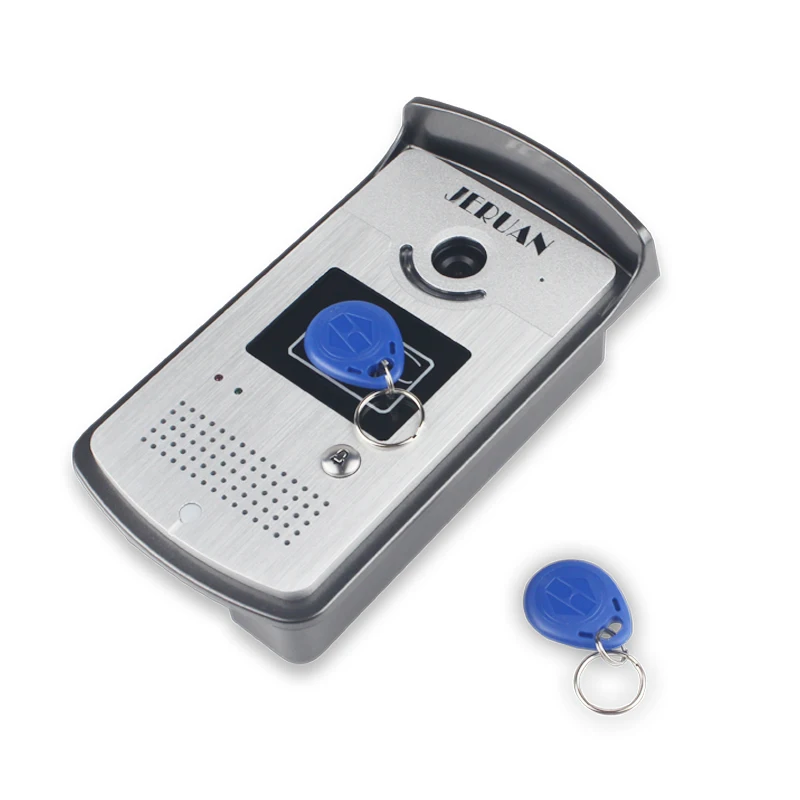

Outdoor Camera | |
Power | input: AC 100-240V |
Camera | SONY 700TVL |
Powe consumpt ion | Standby:2W; unlock:12w |
Valid distance | 80m(6*0.65MM2) |
Viewing angle | 92 degrees |
Working temperature | -10C~+50C |
Installation | Wall mounted |
Dimensions | 174*96*36mm(L*W*H) |
