Wired 7″ Video DoorBell intercom Entry System 2 Monitor+1 RFID Access IR 700TVL Camera+Electric Control Door Lock+Remote Control

Sale Price: $$207.56
Old Price: $$207.56
Product Description
Product Video
Evaluate Score: 0.0
Package Type: piece
Lot Number: 1

159+_01_ -

Item Description

V70F-8-_02



Introductions:

video door phone kit set of indoor monitor+outdoor camera+access control machine+power supply+Magnetic lock+door exit button +remote control+keyfobs,let’s you more convenient!

If you want more keys, please feel free to contact us. Thank you!



V70F-8-_04

Product Description:



This video door phone system you are watching now is your best choice. It has nice appearance and excellent performance.
About the outdoor unit, a 700 tvl camera lets you see clearly who is at the door, built-in led lights enhance the night view.
Besides, it has 2 buttons, each button can control a monitor independently. Can be used for multi apartments, especially suitable for low-rise buildings, don’t need to connect to internet!
About indoor monitor, a 7” LCD color screen gives you great view, white color makes it look more fashionable.
Besides, it is a 4-wire system, the installation is very easy, both of the outdoor unit and indoor unit have plug-and-play connector. It is a great system for home intercom and security!
It supports Handsfree Dual-way Intercom, Indoor Monitoring, Indoor Unlocking, Night Vision, Mute Mode. Using it with access control machine, let you and others in and out more convenient!
It contains 1 outdoor unit and 2 indoor units.By the way, we can provide the system for 2, 3, 4, 6, 8, 10, \12 units apartment. If you need, please feel free to contact us for quotation.



V70F-8-_06

Specifications:



Outstanding Performance                                                             Fashionable Appearance



7″ TFT LCD Color screen                                                                700TVL camera
Super Slim design                                                                             Dual-way intercom
25 Ringtones for choice                                                                    4-Wire Connection
Hands-free intercom                                                                         Room Number Slot
Door answering, indoor monitoring and Unlocking                         Power from indoor monitor
Adjustable Color, Brightness and Ringtone Volume                        Built-in 6 IR Lights for night vision
Power from Power adapter                                                                Aluminum alloy shell/ Two Call Buttons



V70F-8-_08



Picture Show





Fashionable Apperance and Outstanding Video&Audio Performance



The outdoor unit  has 2 buttons, each button can control a monitor independently.Can be used for multi apartments, especially suitable for low-rise buildings, don’t need to connect to internet.The indoor unit has good shape, white color also makes it look more fashionable Stable microphone and speaker provide better Video&Audio performance.



V70F-8-_10

Handsfree Dual-way Intercom and Indoor Monitoring



When a visitor ring the bell, the monitor will be activated and show the image outside, then you can see and hear outside. Press the answer button, then you can talk to outside, press the answer button againto turn it off. If you do not press the button after conversation is finished or if no one answer the call, the monitor will turn off automatically after 60s. It supports monitoring feature, press the monitoring button, you can see and hear outside situation.

Please note: this kit does not has Room-To-Room intercom feature, it only supports outdoor to indoor  intercom. (If you need the kit with Room-To-Room intercom feature, please check other item in our store).



V70F-8-_12

Led Lights for Night-vision, allows you to see color image at night



The outdoor unit embeds in 6 led lights, the lights will turn on once camera is activated (someone presses the call button or presses the monitor button). This feature allows you can still see color image (Not Black&White) at night. It is a brilliant design.



V70F-8-_14

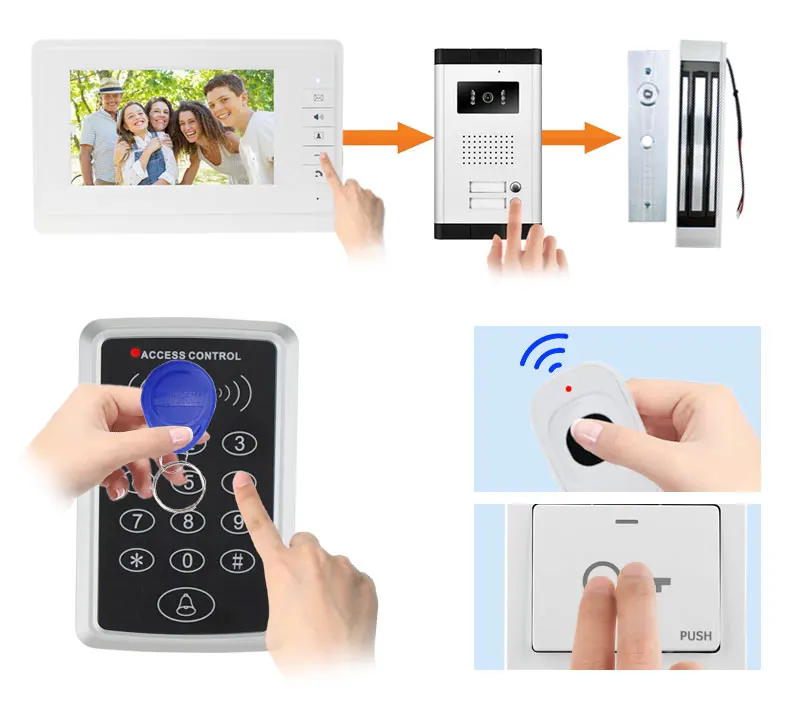

Compatible with Electrical lock and Indoor Unlock, keep house safer



This door phone can work with 12V magnetic lock, so you can connect an electrical lock to this system. With this function,  you don’t need go to the door to open door for your guest, you just need to press unlock  button on monitor. Besides, install an access control machine, then the door can be unlocked from outdoor by rfid keyfobs. Also, you can connect an door exit button and wireless remote control to open the door. It also works as an access system. This will bring great convenience for you and others.

V70F-8-_16

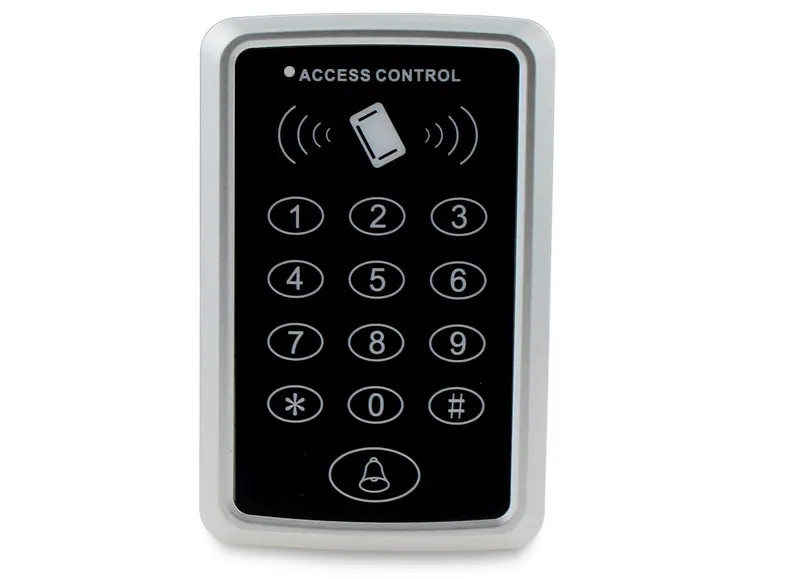

Access Control Machine

T11 is a non contact type induction card and password access control of security access control!

Model:T11
Memory:1000 standard users
Card read distance: 1-15cm
RFID card type : EM ID card
Frequency: 125KHz
Working voltage: DC 12V+10%
Operating current:< 100mA
Working temperature: -10 C – 70 C
Wide rel. humidity range: 20%-90%
size: 120mm(L)*22mm(H)*78mm(W)

V70F-8-_18

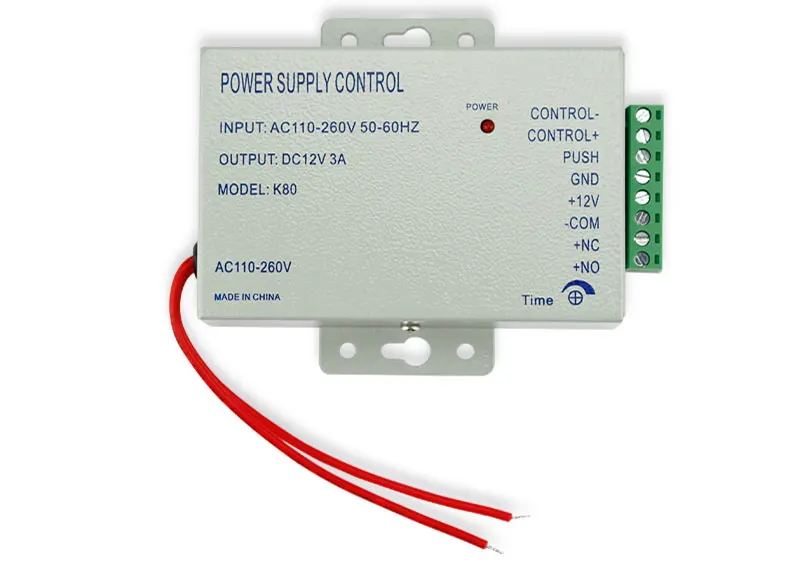

Power Supply

This is AC110 – 260V/3A power supply controller for access control system.Connect to access control, all kinds of electric lock,amd exit button.It can directly control the lock;Helps to reduce the overload of  the access controller;Automatic protection function of unexpected short circuit or power failure;NC/NO output mode can be selected for different types of electric lock.

Model:K80
AC input:AC110V-260V/50-60HZ
DC output:DC12V/3A
Power size:105mm*91mm*34mm


V70F-8-_20



180KG/350lb Magnetic Lock



Aluminium shell adopts high strength material, with hard anodised processing. Corrosion resistant.Good quality and durable to use.

Holding force:180kgs/350lb
Voltage:DC 12V
Current:380-430mA
Working temperature:-10 to 55 Celsius degree(14 to 131 Fahrenheit degree)
Humidity: 0 to 95%
Working mode:power-on to lock
Built-in reverse current protection device (MOV)
Lock size: 170*38*21mm(L/W/H)
Plate size: 130*32*11mm(L/W/H)

V70F-8-_22

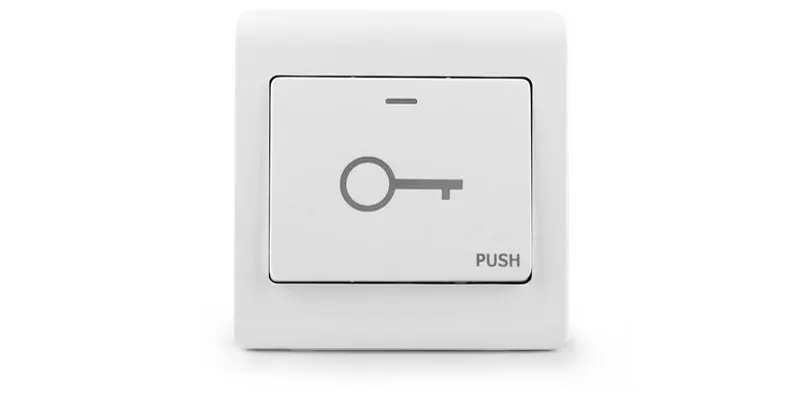

Door Exit Button



Material: Hard Plastic
Faceplate Dimension: 85L*85W(mm)
Maximum Power Rating: 36V DC 3A-5A output
Support both NC Mode(Fail Safe Mode) & NO Mode(Fail Secure Mode)
V70F-8-_24



Remote Control



This is a remote control device for the Door Access Control System use,after you connect it on this system, you can press the remote control to open the door remotely, the distance can rech up to 50 meters.

Input Power: DC10V-14V
Standby Current: <5MA
RF Frequency: 315M or 433M
Output Terminal: NO,NC,COM

V70F-8-_26



Product Analysis





V70F-8-_28

Specification



V70F-8-_29

Wiring Diagram



It is a 4-wire system, we will provide 4 core connectors in the package, you need use 4 core cable to do the connection. Please refer to below wiring.

V70F-8-_31

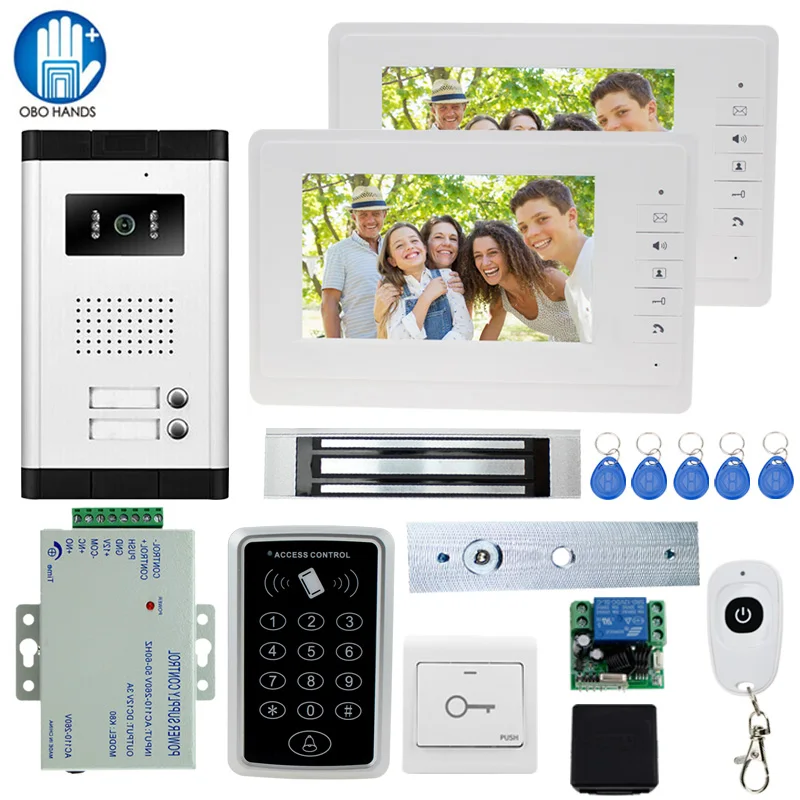

Package Including





V70F-8-_32

2* indoor monitor
1* outdoor camera
1* T11 access control keypad
1* 180kg electric magnetic lock
1* K80 power supply
1* exit button
1* remote control
2* Mounting plate
5* keyfobs
2* Power adapter (us/au/eu/uk plug)
2* Cable(5m)
3* Cable
2* Mounting plate
2* Bag of screws
1* User manual
