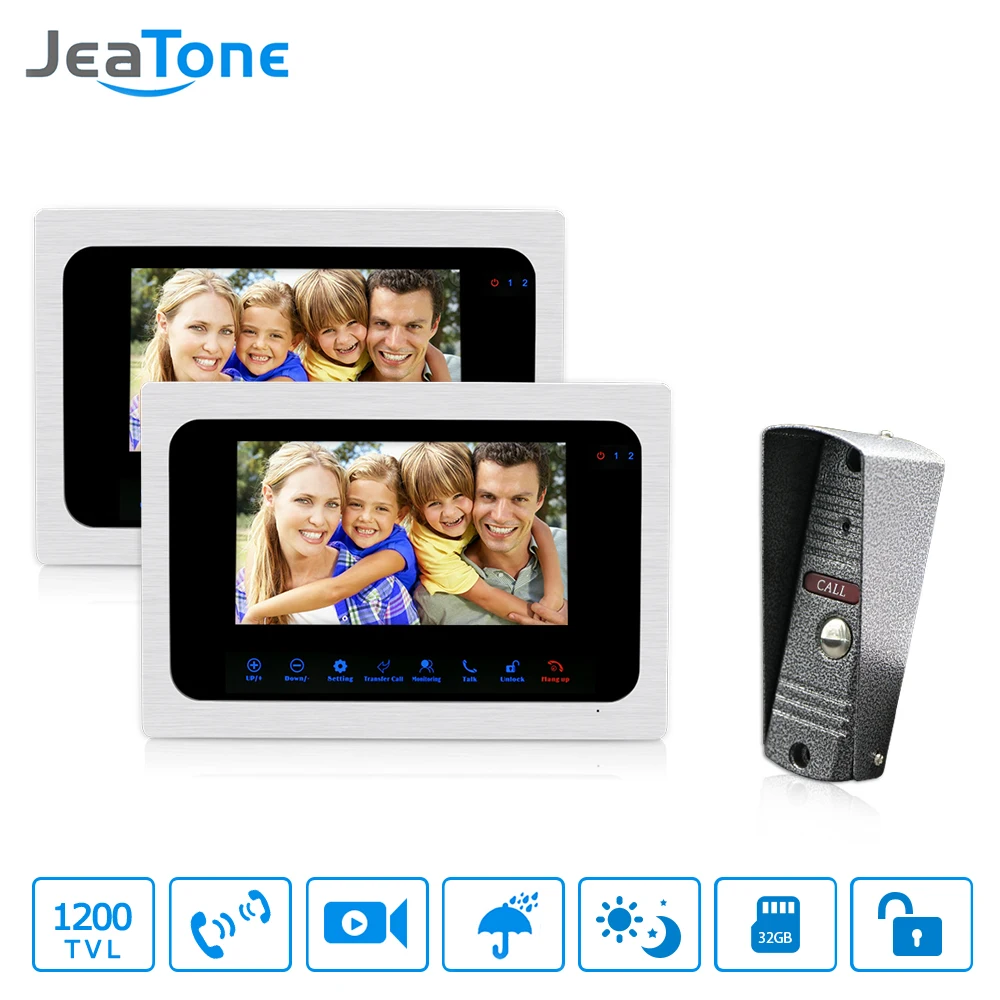

With JeaTone 7” Wired Video Door Phone System, Visitor Can Use Call Panel Calls, Then You Use Indoor Monitor Unlocking, Monitoring, Taking Pictures And Recording Video.
Multi-languages OSD Menu
The System Supports Six Different Languages: English, Russian, French, Arabic, Spanish, Japanese.
Clock & Date Mode
With This New Function, You Can Consider The Indoor Monitor as a Clock Hanging On The Wall. It Always Shows The Time As Long As You Plug In Power For The Monitor.
1200TVL Resolution Camera, View More Clearly
1200TVL High Resolution HD CMOS, See Sharper And More Details Than 800TVL/600TVL.
It Helps You Identify The Visitors Even In The Dark Night.
|
Fashionable Appearance ♦1200TVL Camera ♦3pcs 940 Nanometer IR LEDs For Night Vision ♦Adjustable Intercom Volume ♦Dual-way Intercom ♦IR Sensor, Turn On/off IR LEDs Automatically ♦Easy To Install And DIY Installation ♦Rust-proof Aluminium Alloy Anti Vandal Panel ♦IP65 Weatherproof |
 |
|
Product Specs-Outdoor |
|
|
Camera Sensor |
1/3″ CMOS, 1200TVL-Line High Resolution |
|
Lens |
3.7MM HD Pinhole Lens |
|
Night Vision |
IR Light, 3pcs IR LEDs |
|
Electronic Lock |
Support |
|
Power Consumption |
200mA Max. |
|
Power Supply |
Supplied From Indoor Monitor |
|
Material |
Aluminum Alloy panel |
|
Waterproof |
IP65 |
|
Operation Temp |
-40°C +50°C |
|
Installation |
Surface Mounted |
 |
Excellent Performance ♦7″TFT Display, Wire Drawing Aluminum Case ♦Touch Button,With Storage ♦Room to Room Intercom ♦Door Answering, Monitoring And Unlocking ♦Adjustable Color, Brightness and volume ♦Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card ♦12 Ringtone For Choice |
|
Product Specs-Monitor |
||
|
Monitor & Resolution |
7″ TFT LCD, 800*480 |
|
|
Memory |
Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card |
|
|
Intercom Code |
Hands-free Dual-way Communication |
|
|
Delay Calling Time |
120s |
|
|
Keypad |
Touch Button |
|
|
Power Input & Consumption |
External Power DC 12V; Standby:3W; Working:5W |
|
|
Material |
Wire Drawing Aluminum Case | |
|
Recording |
Picture: Jpeg Format; Vide: Avi Format |
|
|
Support |
2 Call Panel +4 Indoor Monitor + 2 Analog Camera & 2 PIR |
|
|
Operation Temp |
-10°C +60°C |
|
|
Installation |
Surface Mounted |
|

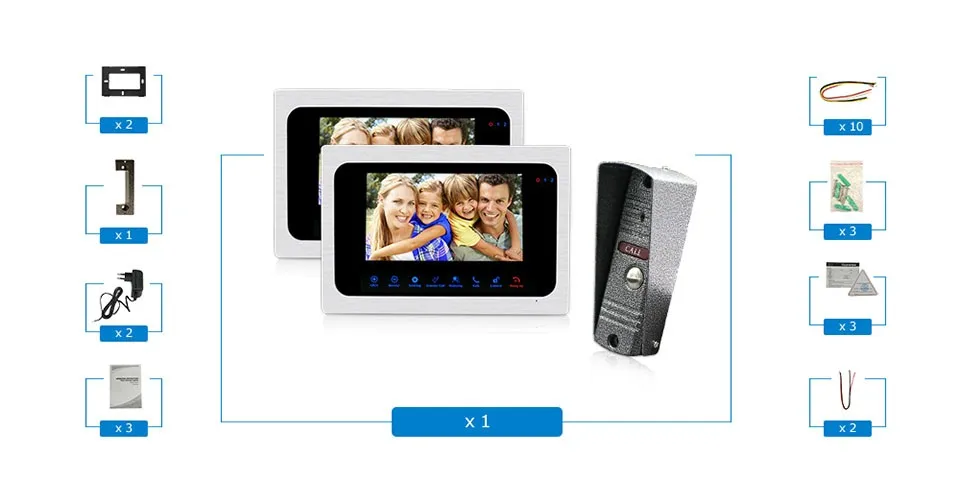

Package
|
2x Indoor Monitor 2x Monitor Mounting Plate 2x Power Adapter 10x 200mm 4 Pin Connerctor 3x Gurantee Card 3x English User Manual |
1x Outdoor Call Panel 1x Call Panel Mounting Plate 2x 200mm 2 Pin Connector 3x Screw Bag 3x Qualified Certificate 1x Rain Cover |
Please Notes：
The Extension Cable(5m,15m,25m) Is Not Included, You Need To Buy It Separately According To Your Needs.(Input:100V-240V)
We Will Send Applicative Power Adapter To Your According To Your States
Installation Method
Connection Diagram
PIR Sensor And CCTV Camera Installed To Work Together Can Alarm and Video Recording (Camera with individual power).
