Notice
1:We could not guarantee that our video door phone system could be compatible with your own video intercom system and access control system.If you need to connect other system ,please contact us for technical support before buying.
2:Attempt to disassemble the product can damage it and void your warranty.Please contact us if your products faults,you will have to assume all responsibility without authorization from us.
|
|
|
|
![]() |
Large Screen,High Performance The luxury indoor monitor is with 10.1 inch large screen,with 1024×600 resolution.It show you picture with rich image and strong contrast.The large screen monitor offer you clear viewing experience. It specially suitable for villa,big apartment,hotel and company
|
![]() |
1200TVL,Clear and sharper view The outdoor doorbell camera is with 1200TVL CMOS sensor.It is much more clear than 600TVL doorbell camera,which bring you excellent visual experience. |
![]() |
Day/Night vision The outdoor camera has 3 pcs 850 nanometer IR LED and IR sensor,the IR sensor will turn on and the IR led automatically when light in low level.It allows you to see clearly even during night time. |
![]() |
Support to connect with CCTV camera Support connect up to 2 CCTV camera,make you house safe |
![]() |
Compatible with Electronic Lock The system is compatible with electronic lock.With pressing unlock button on indoor monitor,there is no need to go to the door to open door for visitors. |
![]() |
Video/Picture Record,SD Card Supported(Not included) When someone is ringing the doorbell,the mnonitor will record picture/video automatically.If the SD card is not applied,it will record picture.The built-in memory could save 80 pictures.When SD Card is applied,the video recording mode could be set |
![]() |
Dual-way Intercom,call transfer among monitors The item is handsfree,available for dual-way communication.It support communication between indoor monitor and outdoor camera.also support communication between monitor and monitor. |
![]() |
IP65 Waterproof No matter it is sunny day or rainy day.It can work smoothly indoor and outdoor |
![]() |
Provide customized Products.YSECU would like to be your friend Russian button panel indoor monitor is customizable,more friendly interface. We have 2 types button panels: 1st type: English button panels We will send the 1st type as default, Please leave us a note in your order if need the 2nd type. |
![]() |

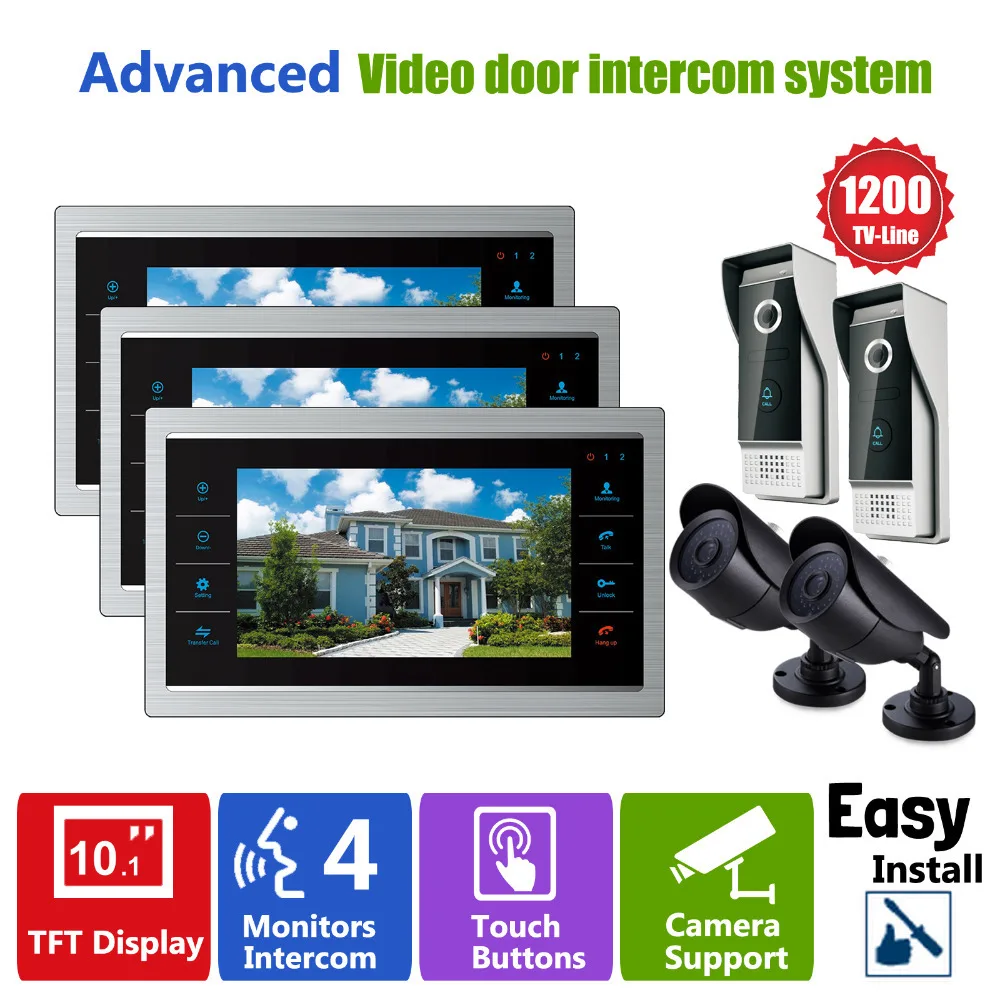

Product Show | Color Video Door Phone Camera Intercom System |
![]() |
|
Highlights – Monitor Touch Sensor Buttons : Touch sensor button with blue and red back-light LED make the monitor mor fashionable beautiful. Variety of Interfaces : Support 2 outdoor video camera doorbell phone, 2 secuity cameras,slave indoor monitor etc, Metal Material : Slim design, Highlight the noble quality. |
|
![]() |
|
![]() |
|
Highlights – Doorbell IR Night Vision Camera : Advanced infrared-assisted lighting feature, enables you to identify the visitors even during night time. IP65 Water-proof : Whatever the indoor and outdoor, sunny day, rainy day, cloudy day,fog,snow,It can work stable. |
|
![]() |
Product Specs – Doorbell | Color Video Door Phone camera intercom system |
Model | DP203 Series | |
camera sensor | 1/3″ CMOS , 1200TV-Line | |
Lens | 3.7mm Lens | |
Night Vision | IR light | |
Electronic lock | support | |
Power Consumption | 200mA Max. | |
Material | aluminium alloy panel with plastic layer | |
Waterproof | IP65 | |
Operation Temp. | -40°c +60°c | |
Installation | Surface mounted |
Product Specs – DM101 Series | Color Video Door Phone camera intercom system |
Monitor | 10.1″ wide color HD TFT LED ,16:9 Display | |
Resolution | 1024*600 | |
Memory | Built-in memory can save 80 pictures, support external max. 32GB SD card | |
Intercom mode | Hands-free dual-way communication | |
Delay calling time | 120s | |
Keypad | touch sensor button | |
Power input | External power DC12V | |
Power Consumption | Standby:1W; Working:5W | |
Material | Aluminum Alloy wire drawing shell | |
Recording | picture:jpeg format;video:avi format | |
Operation Temp. | -10°c +60°c | |
Default language | English, Russian and Chinese(if need other language, pls contact us) | |
|

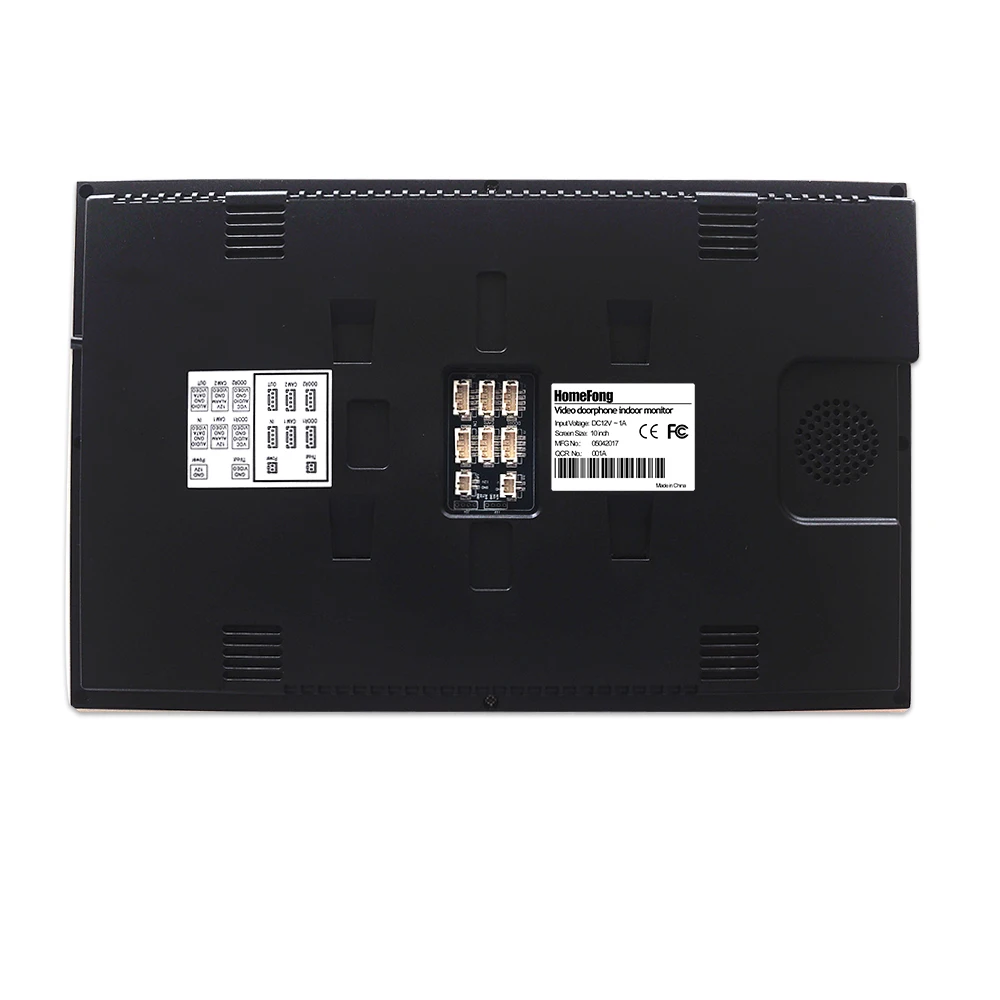

The back of monitor with ” Homefong” logo

![]() |
NO. | Name | Discription |
1 | LED 1 | Power LED |
2 | LED 2 | Door 1 LED |
3 | LED 3 | Door 2 LED |
4 | TFT display | View visitor’s image displayed on the TFT screen |
5 | Operation buttons | Human body sensor touch buttons |
6 | Microphone | Transmit the voice to outdoor camera |
7 | Speaker | Sound from outdoor camera |
8 | Settings button | Menu setting button |
9 | Increase Volume | Increase the ringer vilume of the indoor device or increase volume for the indoor device during intercom |
10 | Decrease Volume | Decrease the ringer vilume of the indoor device or decrease volume for the indoor device during intercom |
11 | Snapshot | To capture a frame of the video stream as a still photo |
12 | Record | Start manual record or stop manual record |
13 | SD card slot | For the models with SD card for recording and photograph |
DESCRIPTION ON SYMBOL | ||
1 | ![]() |
Intercom call or transfer calls to another indoor unit |
2 | ![]() |
Watch the door and camera images |
3 | ![]() |
Release the door lock |
4 | ![]() |
Call button |
5 | ![]() |
Hang up buttons |
6 | ![]() |
1.The button is a composite key,users can press the button,scroll the button upward or download. |
2,In srandby mode,press the button once to quickly access the menu. | ||
3,In main menu settings,scroll the button upward or download to select sub-menu,In sub-menu settings,press button to select menu iptions,scroll button upward or download to adjust values of each option,then press button to confirm.When select option “Return” on the menu,press button to exit menu interface,and the indoor device will be into standby mode. | ||
7 | ![]() |
In monitoring or talking mode,press the button to capture a frame of the current video stream as a still photo |
8 | ![]() |
In monitoring or talking mode,press the button to start manual record,and press it again to stop manual record. |
DESCRIPTION ON LED INDICATOR | ||
1 | ![]() |
The power indicator of the indoor unit |
2 | ![]() |
The door 1 state lights, to door 1 working when the light is on |
3 | ![]() |
The door 2 state lights, to door 2 working when the light is on |
Product Size | Color Video Door Phone camera intercom system |
HD TFT Monitor |
Video Door Phone camera |
![]() |
![]() |
How to install – Monitor | Color Video Door Phone camera intercom system |
![]() |
![]() |
How to install – doorbell | Color Video Door Phone camera intercom system |
![]() |
![]() |
How to use | Color Video Door Phone camera intercom system |
![]() |
|
How to connect to 2 pin electroics lock |
|
![]() |
|
How to connect to 4 pin electroics lock |
|
![]() |
|
The electronics lock in diagram is not included in this item |
What’s in the box | Color Video Door Phone camera intercom system |
![]() |
![]() |
![]() |
![]() |
|
Monitor x 3 |
Monitor mounting plate x 3 |
Door camera x 2 |
Door camera mounting plate x 2 |
|
![]() |
![]() |
![]() |
![]() |
|
Power adapter x 5 |
200mm 4 pin connector x 15 |
200mm 2 pin connector x 3 |
Screw Bag x7 |
|
![]() |
![]() |
![]() |
![]() |
|
User Manual x 7 |
Guarantee Card x 7 |
Qualified certificate x 7 |
CCTV Security Camera x 2 |
Notice:Please note that the extension cable is not included in this item.You need to buy seperately according to your needs. When transmission distance is longer,video and audio singnal suffer more attenuation.Please use standard cables to match the transmission distance.if you have any questions please contact us before you order this item |
Kindly Remind: We will send applicative power adapter to you according to your states. |
![]() |
![]() |
![]() |
![]() |
AUtype | EUtype | UKtype | UStype |
